DC - SLD SERIA
Electronics Loads
DC - SLM SERIA
Electronics Loads
DC - PLZ-U SERIA
Electronics Loads
SLH SERIA
Electronics Loads
DC - PLZ4 W/WA SERIA
Electronics Loads

• Energy recycling to the local power grid
• Low heat waste - silent - lab operation
• CC - CV - CR - CP - CCV - CVC mode
• Ethernet + USB + RS-232 + CAN as standard
• GPIB optional
• SCPI Programming with measurement function
• Dynamic loads with synchronized DAQ
• Data storage directly to USB mass storage device
• Adjustable protections for voltage and current
• Electronic protection
• Digital input and programmable output
• Galvanically isolated fast I/O Port optional

ERI Series

• I/O Port as standard
• Optional Ethernet + USB + RS-232
• Optional CAN Interface
• Optional  GPIB Interface (not at PLA2xx)
• CC - CV - CR - CP Mode
• Protections for current and voltage
• MPP tracking
• V/I characteristic curves
• Digital Master-Slave operation
• Watchdog at remote control
• SCPI programming with DAQ function
• Dynamic loads
• Depending on model, temporary overload capacity
• Electronic protection
• Silent fan cooling
• 19 inch installation possible

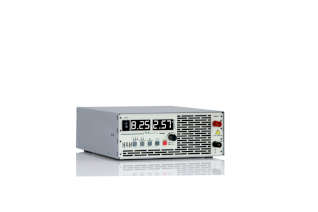

PLA Series
  • Voltage up to 1,200 V
  • 800 V isolation voltage between negative losd input and PE at galvanically isolated I/O port
  • Current up to 2,700 A
  • Power 600 W ... 28,800 W
  • Temporary power overload capacity, depending on model
  • High power density up to 2,100 W in 2 HU (3,200 W in 3 HU)
  • Ethernet + USB + RS-232 + CAN as standard (GPIB optional)
  • Intuitive operation
  • Quick operation by shortcuts
  • Current, voltage, resistance and power mode
  • MPPT Function
  • Energy storage test
  • Internal resistance measurement combineable with dynamic function
  • Protections for current and voltage
  • Dynamic loads
  • SCPI programming with measurement function
  • USB flash drive as measurement data memory
  • Electronic protection
  • Analog measurement outputs for voltage and current
  • Analog control input
  • Digital input and programmable control output
  • Silent fan cooling

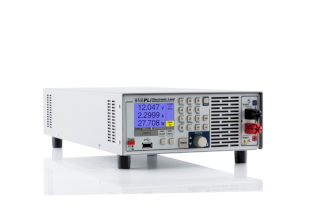

PLI Series
  • Voltage up to 800 V (1200V on request)
  • Currents up to 2,250 A
  • Power 500 W ...  28.8 kW
  • Depending on model, temporary overload capacity
  • Current, voltage, resistance, power mode
  • Dynamic loads
  • SCPI programming with measurement function
  • Electronic protection
  • Analog measurement outputs for voltage and current
  • Analog control input
  • MPP tracking
  • Dynamic function with synchronized data logging
ZS Series
