Broadband Electromagnetic Field Meter & Spectrum AnalyzerEM860

EM860
MANUFACTURER: Deviser Instruments
TECHNOLOGIES: UMTS, LTE, Wi-Fi / WLAN, Radary, GSM
Selective measurement of high frequency electromagnetic fields.

Portable EMF meter for the detection of electromagnetic fields and their sources in the frequency range 9 kHz to 6 GHz.

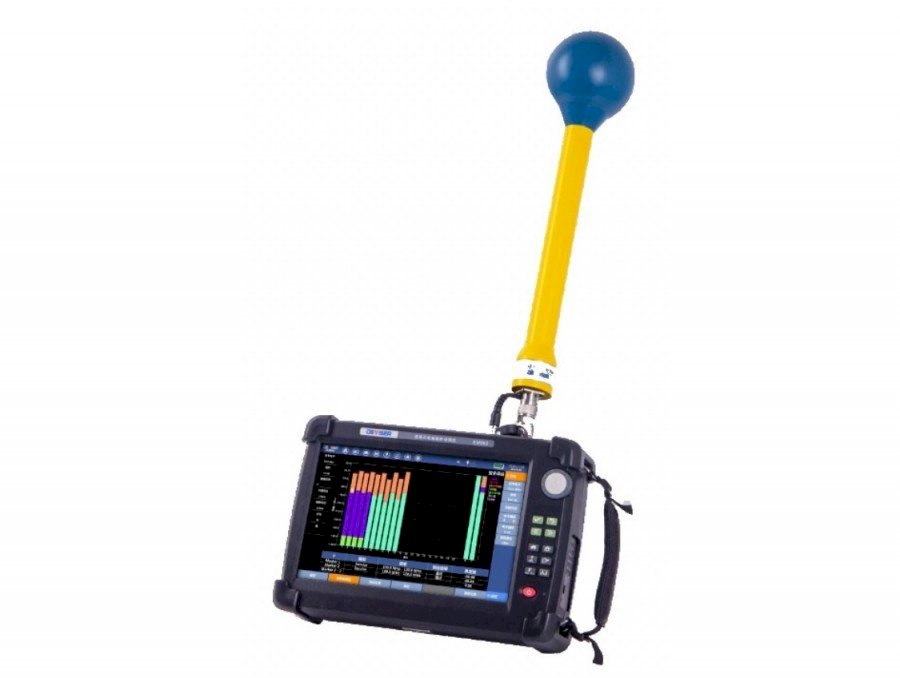

The EM860 is a portable EMF meter for the detection of electromagnetic fields and their sources in the frequency range 9 kHz to 6 GHz. The measuring system consists of a spectrum analyzer and a measuring antenna. The EM860 is primarily used for the safety assessment of areas and rooms at mobile radio base stations or in industry for the analysis of electromagnetic field strength. It supports the specified frequency point, the field strength measurement of the specified axis and the display in the GIS.

All results are displayed in real time. Fast and reliable measurement results are guaranteed by prepared measurement routines and automated presets. Work orders, users, data and reports can be managed, edited and retrieved in a powerful data management system.

Thanks to the compact and robust design and the capacitive LCD display, the EM860 is ideally suited for both stationary and mobile applications.

Features
Safety evaluation of areas and rooms
Spectral analysis

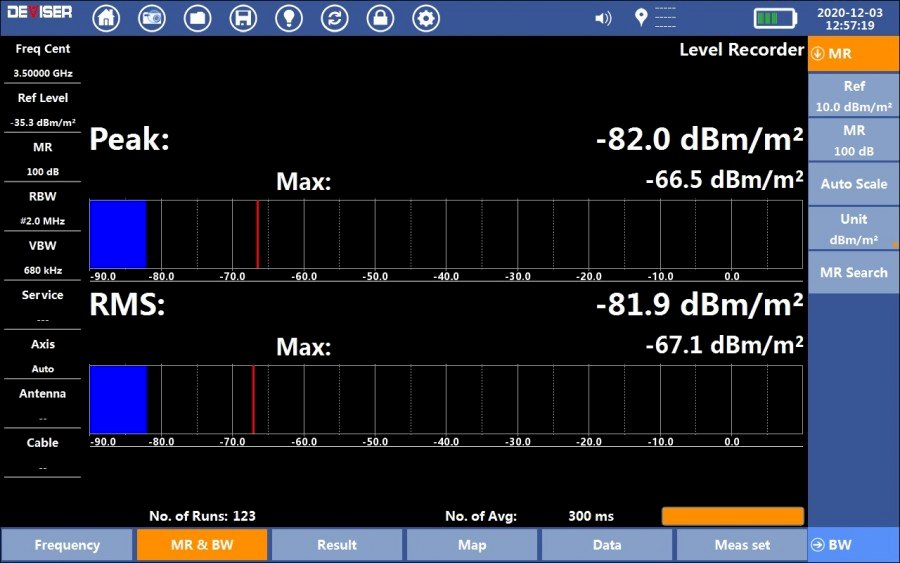

Level recorder
Electromagnetic field strength analysis

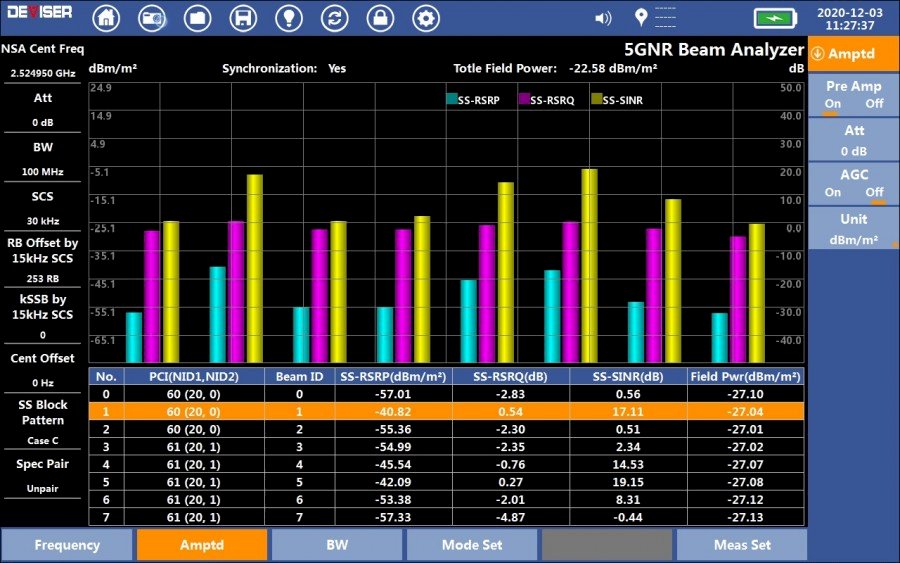

LTE and 5G NR demodulation
Powerful background data management system
Measuring antenna: 420 MHz to 6 GHz
100 MHz real time analysis

Tags: Portable, Spectrum Analysis, EMF, PEM meter
