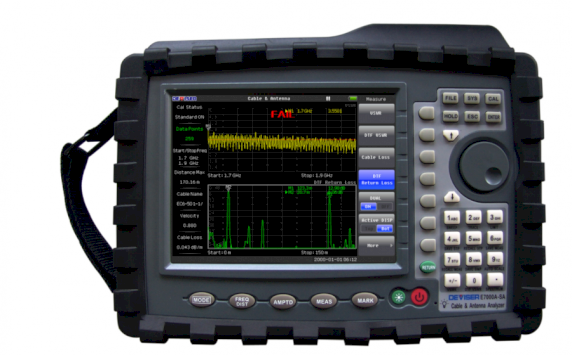

Cable & Antenna AnalyzerE7000

E7000
MANUFACTURER: Deviser Instruments

E7000 Series Cable & Antenna Analyzer with integrated spectrum analyzer , reduces per site maintenance expense, maximizes system up-time, and breaks away from the traditional fix-after-failure maintenance mode by finding small problems before major failures occur. E7000 Series performs various RF measurements aimed at simplifying cable feedline and antenna analysis: Return Loss, SWR, Cable Loss, Distance-to-Fault (DTF), 1-port phase and smith chart.

The E7000 is an integrated multi-functional analyzer that eliminates the need to carry and learn multi instrument. The E7000 is a cable & antenna analyzer that can be configured to include 3 GHz spectrum analyzer, 2-port Transmission Measurement with a bias tee, and a High Accuracy GPS receiver for location stamping.

The bright 6.5-inch color display provides visibility even in broad daylight. Built-in Li-Ion battery can work more than 4.5 hours. Even with “spectrum analysis” option, the working time is still more than 3 hours.

The internal 1G flash memory is large enough to store approximately 2,000 traces or setup files. Measurements data and setup files can also be stored in a USB flash disk or transferred to PC via the LAN cable.

Site Workbench, a PC based software program, provides a simple and easy way to manage, archive, analyze and print measurement reports, customize your cable list, antenna list and signal standards list .

Tags: Occupied Bandwidth – OBW, Reflectometry Measurements, Spectrum Analysis, VSWR Measurement, radio test equipment
