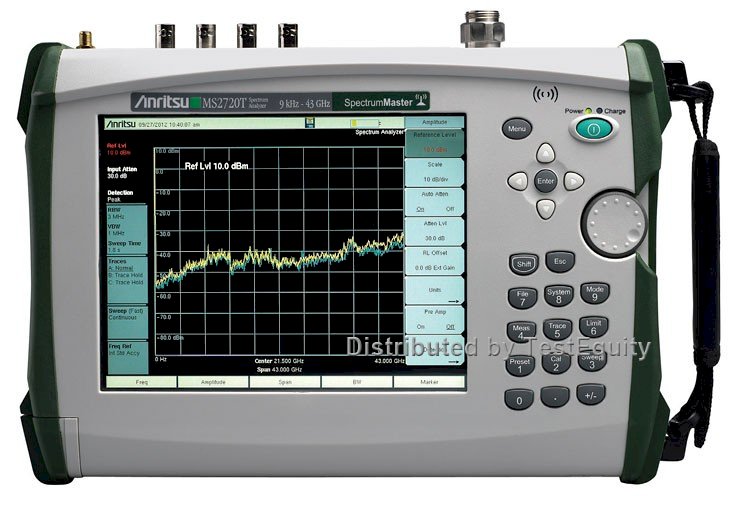

Spectrum Analyzer : Spectrum Master
Manufacturer:
Anritsu Corporation
Technologies:
Radary

Gallery:

  • Introducing New High Performance Handheld Spectrum Master™ from Anritsu
    Video
  • Coverage Mapping with GPS using Anritsu's Spectrum Master, Site Master and Cell Master
    Video
  • Anritsu Interference Location Mapping
    Video
  • Anritsu's Tracking Generator for Spectrum Master™ E-Series Handheld Spectrum Analyzers
    Video
  • Anritsu_Interference Analysis 1.m4v
    Video
  • Spectrum Analyzer : Spectrum Master
    Spectrum Analyzer : Spectrum Master
  • Spectrum Analyzer : Spectrum Master
    Spectrum Analyzer : Spectrum Master
Description



  • Frequency Ranges: 9 kHz to 9 GHz, 13 GHz, 20 GHz, 32 GHz and 43 GHz
  • Measurements: Occupied Bandwidth, Channel Power, ACPR, C/I, Emission Mask, Field Strength
  • 3G and 4G Measurement options for LTE, CDMA, W-CDMA, WiMAX, GSM, and TD-SCDMA
  • Interference Analyzer: Spectrogram, Signal Strength, RSSI, Mapping
  • AM/FM/PM Analysis
  • Dynamic Range: > 106 dB in 1 Hz RBW @ 2.4 GHz
  • DANL: –160 dBm in 1 Hz RBW @ 1 GHz preamp On
  • Phase Noise: –104 dBc/Hz @ 10 kHz offset at 1 GHz
  • 1 Hz to 10 MHz Resolution Bandwidth (RBW)
  • Tracking Generator up to 20 GHz
Documents to download:
Documents to download:
Brochure [24.04 MB]
Technical Specification [4.85 MB]
Przenosny-analizator-widma-z-ekranem-dotykowym-MS2720T-instrukcja-obslugi-PL.pdf [3.27 MB]
Knowledge base
Knowledge base
1) Handheld Product Selector
2) AM/FM/PM Modulation Measurements
3) Meratronik at KKRRiT 2014
4) MS2720T Spectrum analyzers - prezentation on Electronic Magazine
Options and accessories
MS2720T Spectrum Master
MS2720T-0709 Option 709, Frequency Range 9 kHz to 9 GHz
MS2720T-0713 Option 713, Frequency Range 9 kHz to 13 GHz
MS2720T-0720 Option 720, Frequency Range 9 kHz to 20 GHz
MS2720T-0732 Option 732, Frequency Range 9 kHz to 32 GHz
MS2720T-0743 Option 743, Frequency Range 9 kHz to 43 GHz
MS2720T-0809 Option 809, 9 GHz Tracking Generator (Requires Option 709)
MS2720T-0813 Option 813, 13 GHz Tracking Generator (Requires Option 713)
MS2720T-0820 Option 820, 20 GHz Tracking Generator (Requires Option 720)
MS2720T-0024 Option 24, I/Q Waveform Capture (Requires Option 9)
MS2720T-0025 Option 25, Interference Analyzer (Option 31 is recommended)
MS2720T-0027 Option 27, Channel Scanner
MS2720T-0089 Option 89, Zero Span IF Output
MS2720T-0090 Option 90, Gated Sweep
MS2720T-0431 Option 431, Coverage Mapping (Requires Option 31)
MS2720T-0509 Option 509, AM/FM/PM Measurements (Option 431 required for full functionality)
MS2720T-0019 Option 19, High Accuracy Power Meter (Requires USB Power Sensor, sold separately)
MS2720T-0009 Option 9, Demodulation Hardware
MS2720T-0880 Option 880, GSM/GPRS/EDGE Measurements (Requires Option 9)
MS2720T-0881 Option 881, W-CDMA/HSPA+ Measurements (Requires Option 9, Option 31 recommended)
MS2720T-0882 Option 882, TD-SCDMA/HSPA+ Measurements (Requires Option 9, Option 31 required for full functionality)
MS2720T-0883 Option 883, LTE FDD/TDD Measurements (Requires Option 9, Option 31 required for full functionality)
MS2720T-0884 Option 884, CDMA/EV-DO Measurements (Requires Option 9, Option 31 required for full functionality)
MS2720T-0885 Option 885, WiMAX Fixed/Mobile Measurements (Requires Option 9, Option 31 required for full functionality)
MS2720T-0007 Option 7, Secure Data Operation
MS2720T-0031 Option 31, GPS Receiver (Requires GPS Antenna, sold separately)
MS2720T-0098 Option 98, Standard Calibration
MS2720T-0099 Option 99, Premium Calibration
