Description

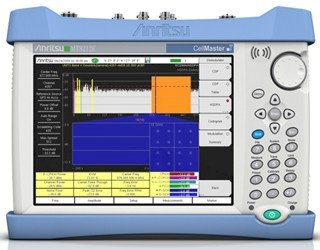

The Cell Master features a 4GHz Cable and Antenna Analyzer, 4GHz Spectrum Analyzer, and a 4GHz Power Meter as standard. It has been designed with a 20MHz Demodulation BW to demodulate installed 2G/3G and WiMAX networks. This full featured base station analyzer is equipped with an easy to use, day light viewable 8.4” Touchscreen and two USB ports for flash drives and power sensors.



Cable and Antenna Analyzer Highlights

  • Measurements: RL, VSWR, Cable Loss, DTF, Phase
  • 2-port Transmission Measurement: High/Low Power
  • Sweep Speed: 1msec/data point, typical
  • Display: Single or Dual Measurement Touchscreen
  • Calibration: OSL, InstaCalTM, and FlexCalTM
  • Bias Tee, 32V internal

Spectrum Analyzer and Interference Highlights

  • Measurements: Occupied Bandwidth, Channel Power, ACPR, C/I
  • Interference Analyzer: Spectrogram, Signal Strength, RSSOI, Signal ID
  • Dynamic Range: > 95dB in 10Hz RBW
  • DANL: -152dBm in 10HZ RBW
  • Phase Noise: -100dBc/Hz max @ 10kHz offset at 1GHz
  • Frequency Accuracy: < ±50ppb with GPS on

Capabilities and Functional Highlights

  • GSM/EDGE
  • W-CDMA/HSDPA
  • TD-SCDMA/HSDPA
  • CDMA, EV-DO
  • WiMAX – fixed, mobile
  • CW Signal Generator
  • Gated Sweep
  • GPS tagging of stored traces
  • Up to 2204 Data Points
  • High Accuracy Power Meter
  • Channal Scanner
  • Internal Preamplifier standard
  • < 5 minute wam-up time
  • E1, T1, T3 Backhaul Analyzer
  • 3 hour battery operation time
  • Master Software Tools
